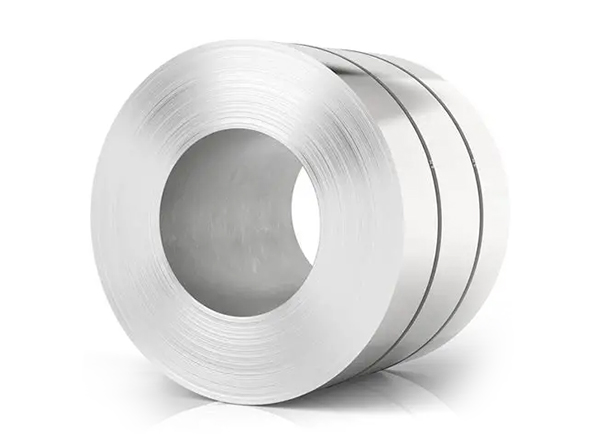

1060 Aluminum Coil
Alloy: 1060
Temper: O, H22, H14, H18, H24, H32, etc.
Width: 100-2600 mm
Thickness: 0.2-8.0 mm
Inner Diameter: 75 mm, 150 mm, 200 mm, 300 mm, 400 mm, 508 mm, or custom
Outer Diameter: Customizable as per customer requirements
Surface Treatment: Original color, silver aluminum, colored coatings, anodized, mirror polished, diamond pattern, embossed, brushed, embossed patterns.
Introduction
1060 aluminum coil, with an aluminum content of ≥99.6%, is a pure aluminum material known for its excellent ductility, thermal and electrical conductivity, corrosion resistance, and ease of processing. With its relatively low cost, it is widely used in various industries such as construction, packaging, electronics, transportation, and consumer goods. Typical applications include aluminum cores for electrical wires and cables, transformer strips, capacitor housings, conductive connections for heat sinks, kitchenware, and more.
Parameter
| Chemical Elements and Content(max) | |||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Ni | Al | Others |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | - | 99.5 | - |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | - | 99.6 | - |
| 1100 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.1 | 99.5 | - |
| 3003 | 0.5 | 0.5 | 4.9 | 0.9 | 1.8 | - | 0.25 | 0.15 | - | Remainder | 0.15 |
| 5052 | 0.45 (Si+Fe) | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | Remainder | ||||
Packing & Delivery
1.Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet;
2.The other packing can be made based on the customer requirement;
3. Normally, we have four layers of packing: wooden pallets hardboard, Kraft paper and plastic. And fill more desiccants into package.
