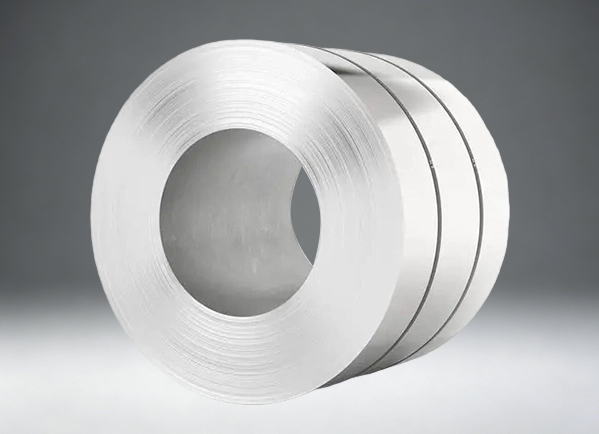

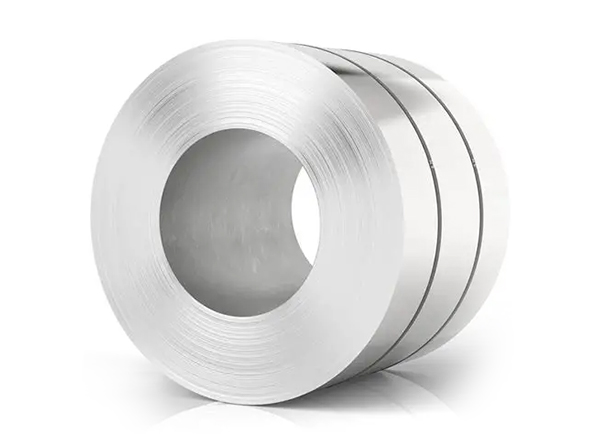

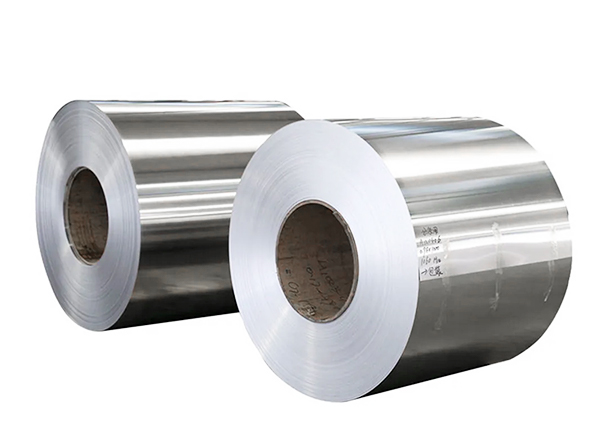

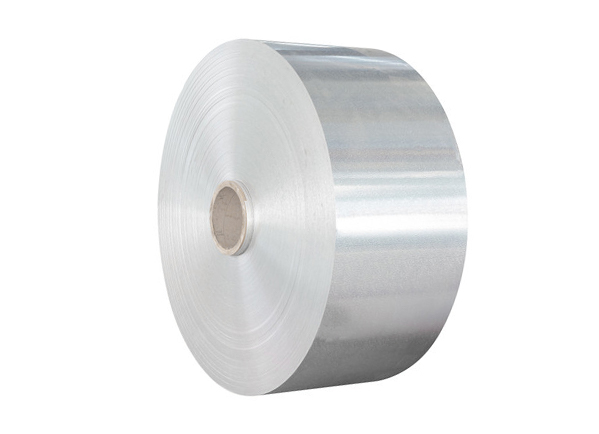

3003 Aluminum Coil
Alloy: 3003
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28, H32
Thickness: 0.2-8.0mm
Width: 100-2650mm
Length: Customizablemm
Inner Diameter: 75mm, 150mm, 200mm, 300mm, 400mm, 508mm, or custom
Outer Diameter: Customizable as per customer requirements
Introduction
3003 aluminum coil is an aluminum alloy with manganese as the primary alloying element. It cannot be strengthened through heat treatment but offers high plasticity, good weldability, and strength greater than that of 1xxx series pure aluminum. It also provides superior corrosion resistance, similar to 1xxx series alloys.
Due to its impact resistance, 3003 aluminum coil is less likely to crack or leak, making it an excellent choice for power battery housing materials. In daily life, common items such as wine bottle caps, beverage bottle caps, and cosmetic bottle caps are often made from 3003 aluminum coil.
Parameter
| Chemical Elements and Content(max) | |||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Ni | Al | Others |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | - | 99.5 | - |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | - | 99.6 | - |
| 1100 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.1 | 99.5 | - |
| 3003 | 0.5 | 0.5 | 4.9 | 0.9 | 1.8 | - | 0.25 | 0.15 | - | Remainder | 0.15 |
| 5052 | 0.45 (Si+Fe) | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | Remainder | ||||
Packing & Delivery
1.Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet;
2.The other packing can be made based on the customer requirement;
3. Normally, we have four layers of packing: wooden pallets hardboard, Kraft paper and plastic. And fill more desiccants into package.
