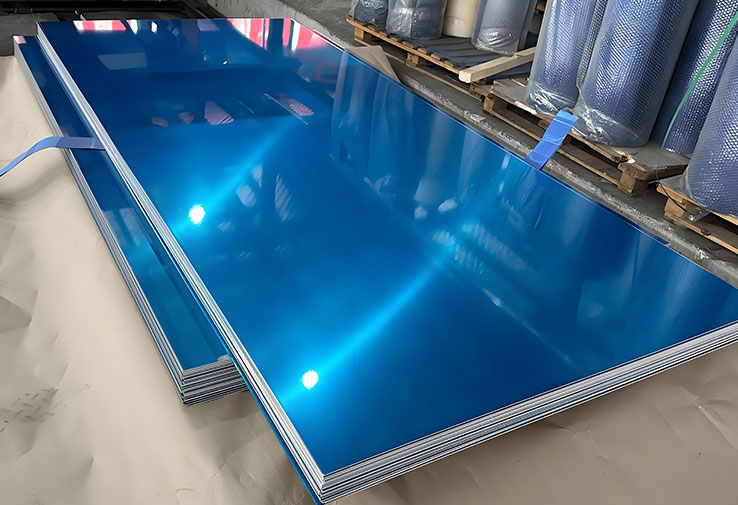

3003 Aluminum Plate
Alloy: 3003
Temper: O, H14, H16, H18, H22, H24, etc.
Thickness: 0.1-10mm
Width: 100-2200mm
Length : 500-11000mm
Introduction
3003 is one of the most widely used aluminum alloys. Essentially a commercial-grade pure aluminum, it is alloyed with manganese, which increases its strength compared to 1100 aluminum alloy. It combines all the excellent characteristics of 1100 aluminum with higher strength. The alloy offers exceptional corrosion resistance, good processing properties, and can be deep drawn, spun, welded, or brazed. However, it cannot be heat-treated.
Applications include: Cookware, decorative strips, awnings, exterior wall panels, storage tanks, chemical equipment, and more.
Key Features of 3003 Aluminum Alloy
-
Machinability:Strength can be increased through cold working, while maintaining good ductility.
-
Surface Treatment:It can be anodized and coated to enhance appearance and protection.
-
Versatility:Suitable for a wide range of end-use applications, from industrial equipment to household items.
Parameter
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
| Single | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | 0.05 | 0.03 | 0.05 | 0.15 | 99.50 min |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.05 | 0.15 | 99.60 min | |
| 1100 | 0.95 | 0.05-0.20 | 0.05 | -- | -- | 0.1 | -- | 0.05 | 0.15 | 99.0min | |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | -- | -- | 0.1 | -- | 0.05 | 0.15 | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | -- | 0.05 | 0.15 | Remainder |
3003 Aluminum Alloy Composition and Properties
-
Alloy:
3003 is an aluminum-manganese alloy. The main component is aluminum, with manganese as the primary alloying element, which enhances corrosion resistance without affecting its machinability.
Non-Heat-Treatable:
Strength is primarily achieved through cold working, not heat treatment.
-
Medium Strength:
It offers a balanced tensile strength and ductility, making it suitable for medium-load applications.
Excellent Corrosion Resistance:
It resists atmospheric and chemical corrosion, making it ideal for marine, chemical, and food processing environments.
-
Good Formability:
It is easy to bend, stretch, and form into complex shapes.
Good Weldability:
Compatible with common welding methods, including MIG, TIG, and resistance welding.
Packing & Delivery
1.Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet;
2.The other packing can be made based on the customer requirement;
3. Normally, we have four layers of packing: wooden pallets hardboard, Kraft paper and plastic. And fill more desiccants into package.
