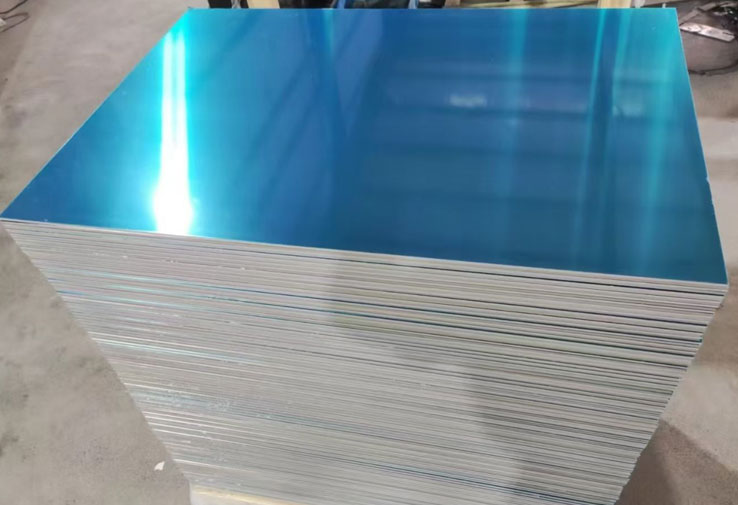

5052 Aluminum Plate
Alloy: 5052
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, etc.
Thickness: 0.15-500mm
Width: 20-2200mm
Length: 500-11000mm
Introduction
Due to its alloy composition, 5052 aluminum plate is the material of choice for marine structures, shipbuilding, and chemical environments.
Excellent Formability and Weldability: It operates smoothly on bending machines and welds cleanly, resulting in fewer issues during production.
Lightweight yet Strong: With a high strength-to-weight ratio, 5052 is ideal for automotive panels, cabinets, and construction applications.
Wide Applications: It is widely used in shipbuilding, heat exchangers, electronic device enclosures, fuel tanks, instrument panels, building facades, and more.
Sustainable and Recyclable: Aluminum can be infinitely recycled in a closed-loop system, supporting the principles of green building and manufacturing.
Advantages of Our 5052 Aluminum Plate
-
Custom Production:We offer various temper options (O, H32, etc.) to meet specific strength and formability requirements for your projects.
-
Global Quality, Fast Delivery: Trusted by customers in the shipbuilding, automotive, and industrial sectors, we combine top-tier quality with reliable delivery times.
-
Competitive Pricing: Thanks to our efficient operations, we reduce per-ton costs without compromising performance. Our factory-direct sales and elimination of intermediaries significantly reduce circulation costs, making our prices highly competitive in the market.
Parameter
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
| Single | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | 0.05 | 0.03 | 0.05 | 0.15 | 99.50 min |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.05 | 0.15 | 99.60 min | |
| 1100 | 0.95 | 0.05-0.20 | 0.05 | -- | -- | 0.1 | -- | 0.05 | 0.15 | 99.0min | |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | -- | -- | 0.1 | -- | 0.05 | 0.15 | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | -- | 0.05 | 0.15 | Remainder |
-
Advantages:
Zhengzhou Shunzhuoda Metal Materials Co., Ltd. specializes in precision-processed 5052 aluminum plates for global customers. Our products range from thin to thick plates and are subject to strict quality control, meeting ASTM, GB/T, EN, and other standards.
-
Wide Applications:
Shipbuilding, Heat exchangers, Electronic device enclosures, Fuel tanks, Instrument panels, Building facades, and more
Packing & Delivery
1.Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet;
2.The other packing can be made based on the customer requirement;
3. Normally, we have four layers of packing: wooden pallets hardboard, Kraft paper and plastic. And fill more desiccants into package.
